제품 상세 정보:
|
| 목: | 7 인치 TFT USB 터치 디스플레이 | 결의: | 1024x600 |
|---|---|---|---|
| 외형치수: | 180x120x7.6 mm | 활동 영역: | 154.21x85.92mm |
| 인터페이스: | LVD 또는 RGB | 밝기: | 400 cd/m2 |
| LCD 타입: | 전달 가능한 정상적으로 검은 TFT | 작동 온도: | -20도 ~ 70도 |
| 보관 온도: | -30도 ~ 80도 | 터치 인터페이스: | I2C & USB |
| 강조하다: | 7 inch IPS TFT Display,1024x600 IPS TFT Display,I2C Interface TFT Capacitive Touch Screen |
||

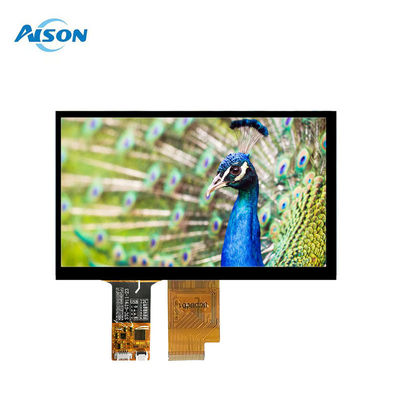

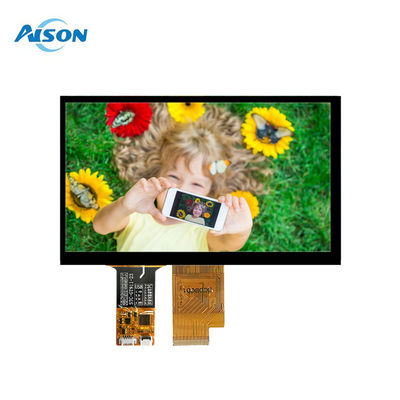

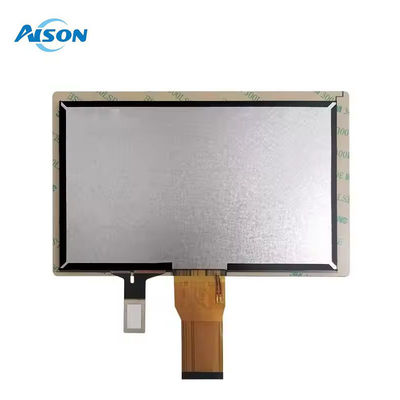

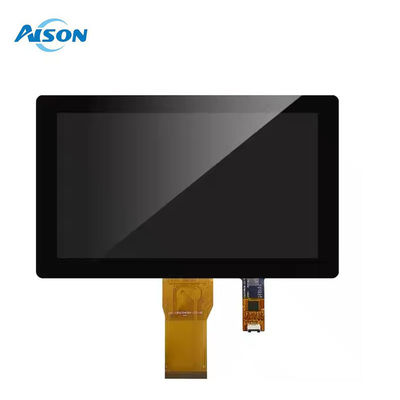

7 inch 1024x600 IPS TFT Display with USB I2C Interface TFT Capacitive Touchscreen
This 7" IPS TFT LCD display has a high resolution screen with 1024x600 pixels. The built-in IPS technology delivers exceptional image quality with superior color reproduction and contrast ratio at any angle. Also included is a high brightness LED backlight with 400 nits or custom. The super bright backlight allows this TFT to be sunlight readable in bright conditions including direct sun. While this transmissive LCD boasts impressive quality with a 3.3 voltage power supply, it also includes a 10-point multi-touch capacitive touch panel, making it an excellent choice for projects that desire high-end visual output with multi-touch functionality. The PCAP touchscreen with cover glass and built-in USB and I2C interface will allow users to perform various gestures and interact more intuitively with its precise touch recognition and enhanced responsiveness for interactive applications.
This 7 inch LVDS TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.
General Data
| Product Name | 7 inch USB TFT Touch Display |
| Resolution | 1024x600 |
| Model Size (W*H*T)mm | 180x120x7.6 |
| Display Area (W*H)mm | 154.21 x 85.92 |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 400 cd/m2 |
| Pin number | 40 pin |
| Contrast Ratio | 700:1 |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
TFT Applications:
This 7-inch IPS tft display module is ideal for various medical and industrial control applications. It is used in medical instruments, diagnostic devices, industrial automation robots, control panels, and maintenance equipment. These 7 inch USB touch displays are integral in presenting diverse medical, control, and maintenance data and information, providing clear, reliable visual output in demanding environments. This makes them essential components in medical and industrial control systems, enhancing both functionality and user experience.
