제품 상세 정보:
|
| LCM: | 8 인치 800*600 IPS TFT LCD 모듈 | 해결: | 800x600 |
|---|---|---|---|
| 모듈 차원: | 182.9*141*5.5mm | 활성 영역: | 162*121.5mm |
| 인터페이스: | 24비트 RGB | 디스플레이 모드: | 정상적으로 검고 전달 가능합니다 |
| 작동 온도: | -20 ~ 70도 | 저장 온도: | -30 ~ 80도 |
| 드라이버 컨트롤러: | JD9165A-A3 | ||
| 강조하다: | 8 inch IPS TFT LCD module,800x600 RGB LCD display,50 pin industrial TFT screen |
||

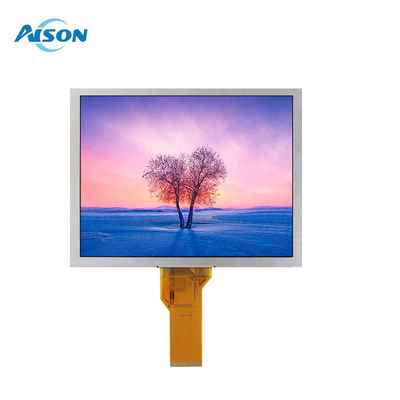

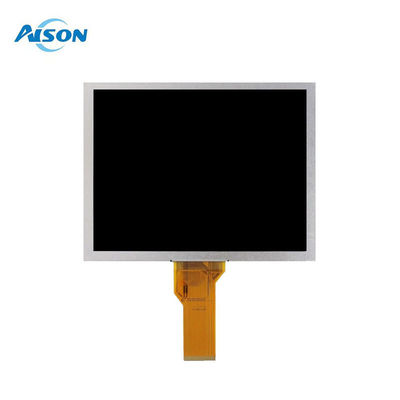

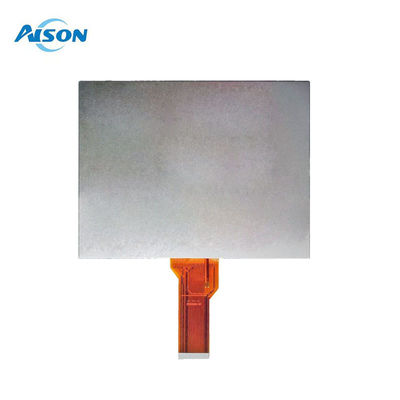

8 Inch 800*600 IPS TFT LCD Module RGB 50 Pin for Industrial Control Equipments
General Description
8-inch Industrial IPS TFT LCD Resolution 800x480 Brightness 1000cd/m2
This 8inch is developed with a standard 800x480 high-resolution IPS display and RGB interface. The IPS technology delivers sunlight-readable image quality with higher brightness, better color reproduction, image consistency, and optical characteristics at any angle. The true color LCD display is RoHS compliant and can be applied to multiple industrial applications.
High-Quality Display: This 8-inch TFT LCD Module features an impressive 800x600 resolution, delivering a clear and crisp visual experience for industrial control equipment applications.
Wide Viewing Angles: Equipped with In-Plane Switching (IPS) technology, this 8 inch tft display offers a wide viewing angle, ensuring optimal visibility from various positions.
Vibrant Colors: The 8 inch lcd screen delivers 16.7 million display colors, providing a rich and immersive visual experience for industrial control and monitoring applications.
Durable and Rugged: Designed to operate in harsh conditions, this display functions within a wide temperature range (-20°C to 70°C) and has a storage temperature range of -30°C to 80°C, making this 8 inch IPS TFT -LCD ideal for demanding environments.
High Brightness and Contrast: With a luminance of 1000 cd/m² and a contrast ratio of 800:1, this 8 inch IPS display ensures clear visibility even in bright environments.
General Data
| Model Name | 8 Inch 800*600 IPS TFT LCD Module |
| Resolution | 800X600 |
| Model Size (W*H*T)mm |
182.9*141*5.5 mm
|
| Display Area (W*H)mm |
183x141x6mm
|
| Interface | 24 Bit RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing | ALL |
| Brightness | 1000 cd/m2 |
| Pin number | 50 |
| Viewing Angle | 80/80/80/80 |
| BACKLIGHT TYPE | 27 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications:
This 8 inch 4:3 TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
