제품 상세 정보:
|
| 이름: | 3.5인치 세로형 TFT 모듈 | 해결: | 320x480 |
|---|---|---|---|
| 개요 차원: | 54.86(W)* 83.43(H) * 2.35(T) | 활성 영역: | 48.96*73.44mm |
| 인터페이스: | SPI | 명도: | 300 CD/M2 |
| 디스플레이 모드: | TFT, 일반적으로 흰색 | 작동 온도: | -20 ~ 70도 |
| 저장: | -30 ~ 80도 | 드라이버 IC: | ST7365P |
| 백라이트: | LED 6개 | ||
| 강조하다: | 3.5 inch TFT LCD display SPI,320x480 portrait TFT LCD,TN TFT LCD display module |
||

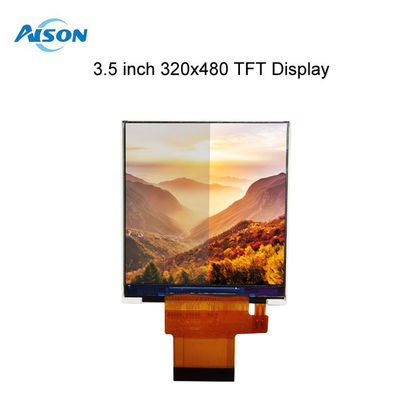

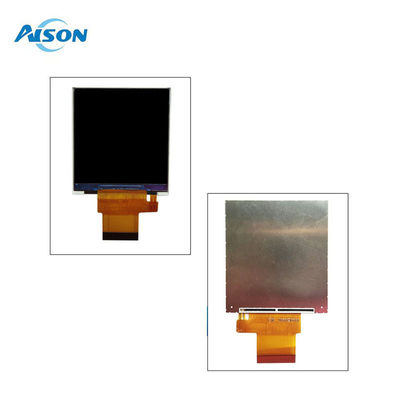

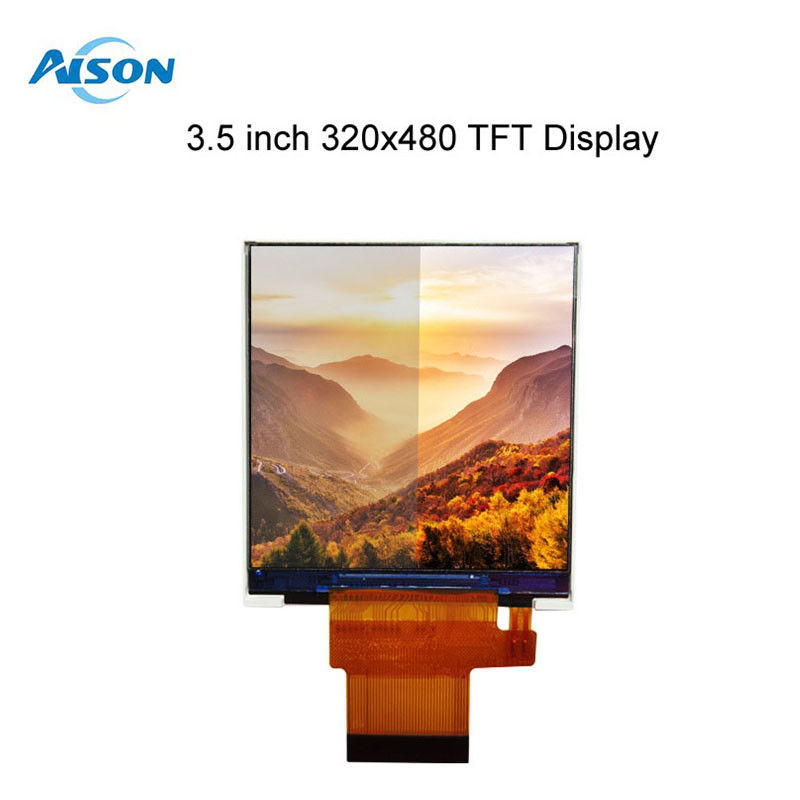

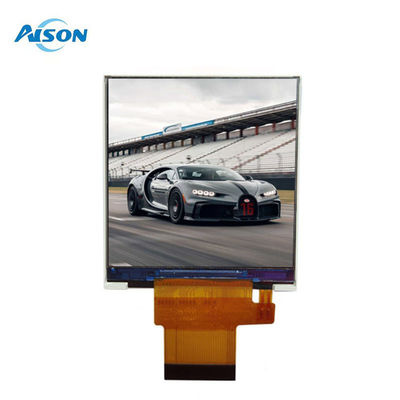

3.5 Inch 320x480 Portrait TN TFT LCD Display SPI Interface
General Data
| Product Name | 3.5 inch TFT Display |
| Number of Pixel | 320x480 |
| Interface | SPI |
| Luminance(cd/m2) | 300 cd/m2 |
| Active area | 48.96* 73.44mm |
| LCM (W x H x D) |
54.86(W)* 83.43(H) * 2.35(T)
|
| Viewing Direction(eye) | 12 O'clock |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |
Drawing
Product Details
TFT Applications
Overall, Z035HV14 is a versatile and high-performance display screen that is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics.
