제품 상세 정보:
|
| LCM: | 15인치 BOE DV150X0M-N10 LCD 디스플레이 | 해결: | 1024x768 |
|---|---|---|---|
| Lcm 윤곽: | 326.5 (W) × 253.5 (H) × 10 (D) | 활성 영역: | 304.128 ((W) × 228.096 ((H) mm |
| 신호 인터페이스: | LVDS 20 핀 | 명도: | 350cd/m2 |
| 디스플레이 모드: | TFT, 일반적으로 검정색 | 시청 방향: | 모두/ips |
| 작동 온도: | -20 ~ 70 ° C | 스토리지 온도: | -20 ~ 70 ° C |
| 어플리케이션: | 산업용 디스플레이 | ||
| 강조하다: | 15 inch industrial IPS LCD display,1024x768 TFT LCD with LVDS,BOE original 20Pins LCD screen |
||

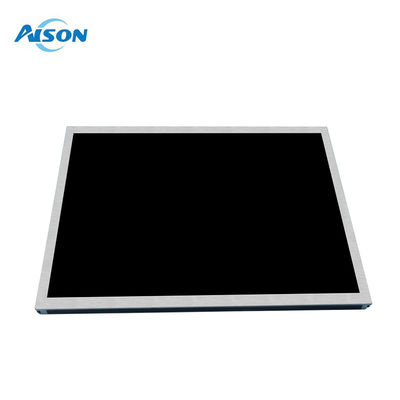

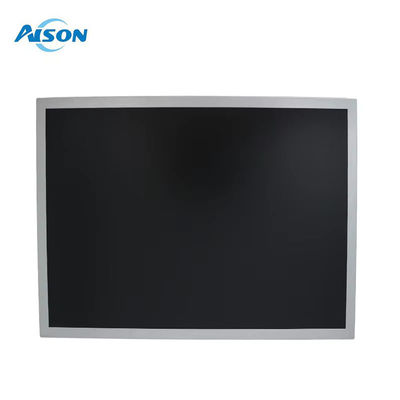

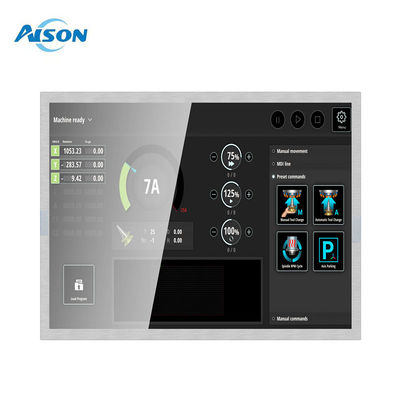

BOE Original 15 Inch 1024x768 IPS TFT LCD Display 20Pins LVDS Interface for Industrial Use Model DV150X0M-N10
General Data
| Part Number | DV150X0M-N10 (BOE Panel) |
| Size | 15.0 inch |
| Resolution | 1024x768 |
| Display Mode | IPS(Normally Black) |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Response Time | 30(Typ.)(Tr+Tf) ms |
| Dot Pitch | 0.099(H) x0.297 (V) mm |
| Active Area | 304.128(H)x228.096(V) mm |
| Outline Dimension | 326.5 (H) x 253.5(V) × 9.7(D) mm |
| LCM Luminance | 350cd/m2 (Typ.) |
| Backlight Type | 48 White LEDs[12S4P],12V/600mA |
| Lifetime | 50000Hours (Min.) |
| Interface | LVDS (1 ch, 8-bit) , 20pins Connector |
| Operating Temperature | -20°C~+70°C |
| Storage Temperature | -20°C~+70°C |
| Touch Panel | Optional Touch Panel / Customization |
| Industry Application | Industrial / Digital signage |
Product Details
TFT Applications:
