제품 상세 정보:
|
| 제품명: | 12.3인치 MIPI TFT 디스플레이 | 해결: | 720X1920 |
|---|---|---|---|
| 모듈 크기: | 312.83(L) x 118.31(W) x3(T)mm | 활성 영역: | 109.512(H) x 292.032(V)mm |
| LCM 유형: | 미피 | 명도: | 350cd/m2 또는 관례 |
| 작동 온도: | -20~70도 | 보관 온도: | -30~80도 |
| 디스플레이 유형: | 일반적으로 검정색 | 드라이버 IC: | HX83102E |
| 강조하다: | 12.3 inch IPS TFT display,MIPI interface TFT screen,30pin industrial TFT display |
||

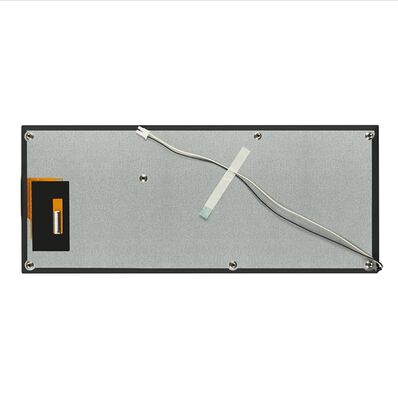

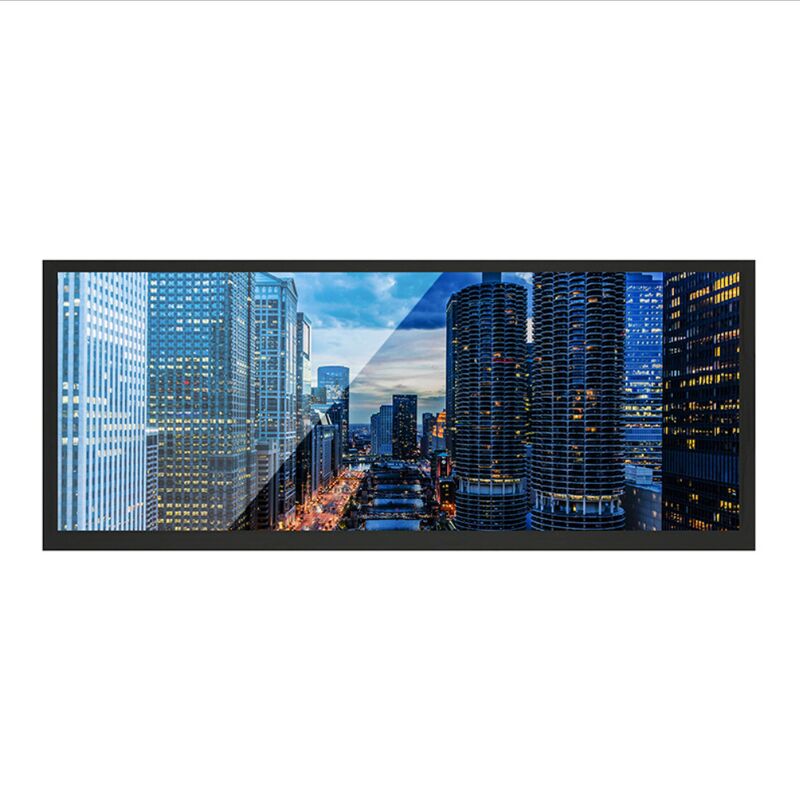

12.3 Inch 720x1920 MIPI Interface 30Pin IPS TFT Display 350cd/m2
General Data
| Model Name | 12.3 Inch MIPI TFT Display |
| Resolution | 720X1920 |
| Model Size (W*H*T) |
312.83(L) x 118.31(W) x3(T)mm
|
| Display Area (W*H) | 109.512 (H) x 292.032 (V)mm |
| Interface | MIPI |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 85/85/85/85 |
| Brightness | 350 cd/m2 |
| Pin number | 30 pin |
| Contrast Ratio |
1200:1
|
| Operating temperatures | -20 to 70 ℃ |
| Storage temperatures | -30 to 80 ℃ |
Drawing
TFT Application
From industrial machinery and equipment to HMI (Human-Machine Interface) systems, POS (Point of Sale) terminals, and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.
