제품 상세 정보:
|
| 제품명: | 12.3인치 MIPI TFT 디스플레이 | 해결: | 1920x720 |
|---|---|---|---|
| 모듈 크기: | 310x128x6.8mm | 활성 영역: | 292.03x109.5mm |
| LCM 유형: | LVDS | 명도: | 1000cd/m2 |
| 작동 온도: | -30~80도 | 보관 온도: | -35~85도 |
| 디스플레이 유형: | 일반적으로 검정색 | ||
| 강조하다: | 12.3 Inch Automotive TFT LCD Display,1920x720 IPS LVDS Display,1000 Nits Industrial TFT Screen |
||

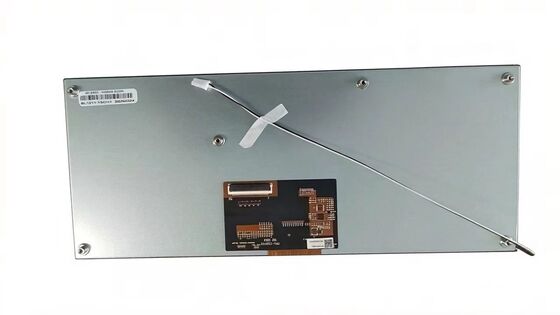

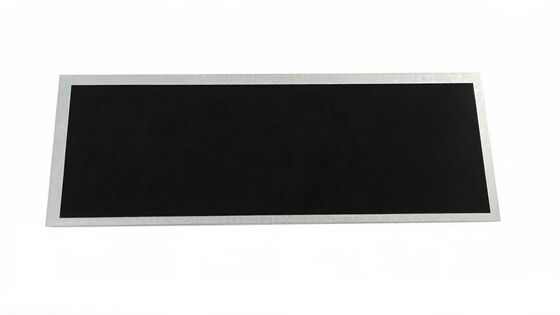

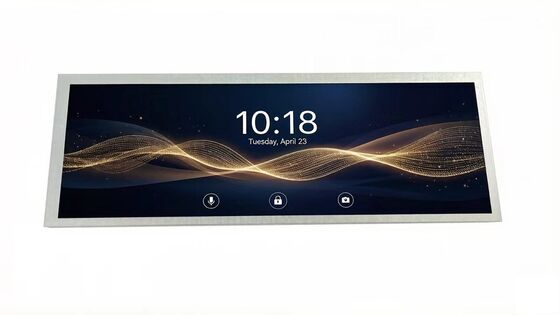

12.3 Inch 1920*720 1000 Nits LVDS Interface Universal Car Display Automotive TFT LCD Panel
General Data
| Model Name | 12.3 Inch MIPI TFT Display |
| Resolution | 1920x720 |
| Model Size (W*H*T) |
310x128x6.8mm
|
| Display Area (W*H) | 292.03x 109.5 mm |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 85/85/85/85 |
| Brightness | 1000 cd/m2 |
| Pin number | 50 pin |
| Contrast Ratio |
1200:1
|
| Operating temperatures | -30 to 80 ℃ |
| Storage temperatures | -30 to 85 ℃ |
Drawing
TFT Application
From Automotive,industrial machinery and outdoor vending systems, this high resolution TFT LCD display module offers excellent performance and reliability.
Solutions:
